Exmark Staris Stand-On Mowers

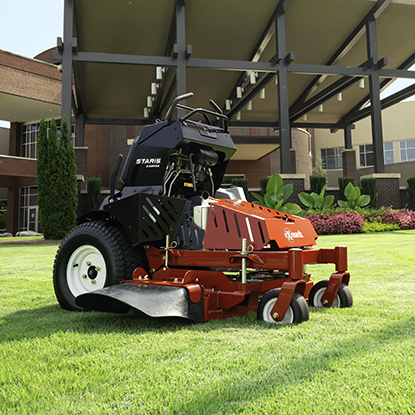

E-SERIES STARIS

EXMARK STARIS E-SERIES MOWER MODELS / ENGINE AND
CUTTER DECK COMBINATIONS
STE600CKA32300: 32" Ultracut Series 3 Deck, 18.5hp Kawasaki FS600V air-cooled engine
STE600CKA36300: 36" Ultracut Series 3 Deck, 18.5hp Kawasaki FS600V air-cooled engine
STE600GKA44300:  44" Ultracut Series 3 Deck, 18.5hp Kawasaki FS600V air cooled engine

EXMARK STARIS E-SERIES DIMENSIONS

E-Series Staris Product Dimensions: 32" Staris 36" Staris 44" Staris
Length: 58.103" 58.103 61.7"
Height: 47.3" 47.1"  47.1"
Weight:  712 lbs 720 lbs.  737 lbs.
Warranty 4 years or 750 hours commercial
No hour limit the first 2 years		 4 years or 750 hours commercial
No hour limit the first 2 years		 4 years or 750 hours commercial
No hour limit the first 2 years

STARIS MOWER FEATURES

Serviceability
Smart Controller
Cut Quailty
Drive System
Compact Design
The flip up front cover gives operators easy access to perform routine lawn mower maintenance and cleaning, without the need for tools. The rear cover lifts and locks into place providing easy access to check and fill both engine oil and hydro fluid. The intuitive Smart Controller reduces downtime with maintenance reminders and on-screen machine health diagnostics along with an enhanced interlock display with both engine and PTO hour displays. Available in a variety of deck widths, Staris E-Series features proven Exmark UltraCut Series 3 decks, while the S-Series feature the proven Exmark UltraCut Series 4 decks, providing unmatched performance and Exmark's legendary quality of cut. The trusted pump and wheel motor combination provides commercial durability and smooth control. The system utilizes hard hydraulic lines reducing potential leak points, improving durability and hydro-oil cooling. The compact size reduces trailer space and storage and gives the ability to access more yards, more quickly, while providing exceptional maneuverability on tough terrain.


S-SERIES STARIS

S-SERIES PRODUCT HIGHLIGHTS:
    The compact size allows more units to fit on a single trailer.

    S-Series features:

    • Drive System: Two Hydro Gear 12 cc pumps powering two Parker 12 cubic inch motors.
    • Speed: Infinitely variable speed selection 0–10.0 mph (12.9 kmph) forward, 0–4.0 mph (6.4 kmph) reverse
    • PTO Engagement: Warner 175 or 200 ft-lb clutch. (depending on model)
    • Fuel Capacity: 10-gallon (37.9-L), dual fuel tanks with dual fill locations.
    • Drive Wheel Release: Allows unit movement without engine running.
    • Safety Package: Operator Presence Controls (OPC) with safety interlock system indicators.
    • Casters: .50 thick caster yoke arms with tapered roller bearings
    • Deck Construction:  10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
    • Deck Style:  Full-floating UltraCut Series 4 on 48, 52, or 60 inch decks. Side discharge standard, with molded discharge chute and option to bag or mulch.
    • Deck Lift:  Single point height of cut, with lift-assist springs.
    • Cutting Heights:  1.5" to 5.0" height of cut, adjustable in 1/4" increments - adjustable from the operator position.
    • Blade-Tip Speed:  Approximately 18,500 fpm.
    • Tractor Frame:  Welded, heavy-duty 1.5" x 3" tubular steel.
    • Steering Control:  Twin levers with no-tools adjustable front reference bar to modify forward ground speed.
    • Front Caster Tires:  12 x 6.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.
    • Drive Tires:  23 x 10.5-12 Carlisle Turf Master Tires.
    • Parking Brake:  Lever-actuated bar brake.
    • Blade Spindles:  No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft..
    • Electrical:  12-volt battery with 20-amp alternator.


    EXMARK STARIS S-SERIES MOWER MODELS / ENGINE AND
    CUTTER DECK COMBINATIONS

    STS651GKA48400: 48" Ultracut Series 4 Deck, 20.5hp Kawasaki FX651V air-cooled engine
    STS730GKA52400: 52" Ultracut Series 4 Deck, 23.5hp Kawasaki FX730V air-cooled engine
    STS730AKC52400:  52" Ultracut Series 4 Deck, 23hp Kohler EFI air-cooled engine
    STS730GKA60400: 60" Ultracut Series 4 Deck, 23.5hp Kawasaki FX730V air-cooled engine
    STS740EKC60400:  60" Ultracut Series 4 Deck, 25hp Kohler EFI air-cooled engine

    EXMARK STARIS S-SERIES DIMENSIONS

    S-Series Staris Product Dimensions: 48" Staris 52" Staris 60" Staris
    Length: 69.3" 69.3" 70.5"
    Width 59.6" 64.8"  72.8"
    Weight:  960 lbs 990 lbs. 1045 lbs.
    Overall Height: 46.7" 46.7" 46.7"
    Warranty 4 years or 1250 hours commercial
    No hour limit the first 2 years    		 4 years or 1250 hours commercial
    No hour limit the first 2 years    		 4 years or 1250 hours commercial
    No hour limit the first 2 years
STARIS MOWER ACCESSORIES



Lightweight and easy to attach, this 3-bushel grass catcher fits all Exmark Lazer Z, Pioneer, Radius, Vantage* and wide-area walk-behinds. (*Not available for Vantage Propane models.) 116-7042 spacer adapter required for 36" deck models.
The infinitely adjustable blocker door opens and closes, allowing the operator to quickly control discharge when mowing around parked cars and windows. Easily installs and removes without tools.

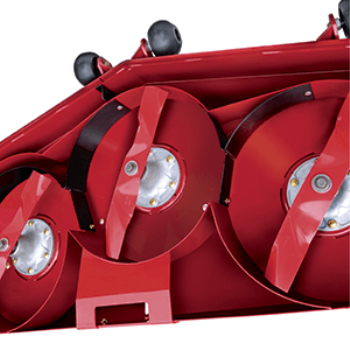

The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping
